Place of Origin : guangdong, China
Brand Name : XHL
Certification : GMP
Supply Ability : 10 Set/Sets per Month
Packaging Details : Carton inside , wooden outside , plastic pallet when delivery
MOQ : 1 Set
Price : $19,999.00 - $49,999.00 / Set
Model Number : XGD
Payment Terms : L/C, T/T
Delivery Time : 30 days
Product name : XHL-XGD
Function : Cap turning machine
Application : Chemical, Pharmaceutical, Biomedical
Filling : 99.9%
Bottle type : Plastic bottle
After-sales service : Video technical support, Online support, Spare parts, Field maintenance and repair service
Warranty : 1 YEAR
Capacity : 1200-3000BPH
Company Profile
Founded in 2003, Jiangsu Winlong Pharmaceutical Machinery Co., Ltd. (stock code:836556), formerly known as Jiangsu Winlong Filling Machinery Co.( Ltd., is located in Jintan District, Changzhou City, Yangtze River Delta Economic Development Zone. Mainly engaged in providing overall solutions for smart workshops in pharmaceutical, biological, health product and daily chemical industries and manufacturing, selling, importing and exporting other packaging machinery products, it is a high-tech enterprise and a member unit of China Association for Pharmaceutical Equipment.
It is an important strategic objective of Winlong to participate in international competition and become stronger and more specialized. Our company attaches great importance to independent innovation, so that our product technology and quality stand at the forefront in the industry in China. With advanced technological innovation capacity and well-trained personnel, it provides domestic and foreign customers with overall individualized solutions for automatic production of many packaging production lines. In addition, it has also been granted a number of patents for invention. While actively responding to “Made in China 2025” and promote the industry 4.0 system engineering project, we are creating value for customers.
Our Factory
Our Warehouse
Why choose us?

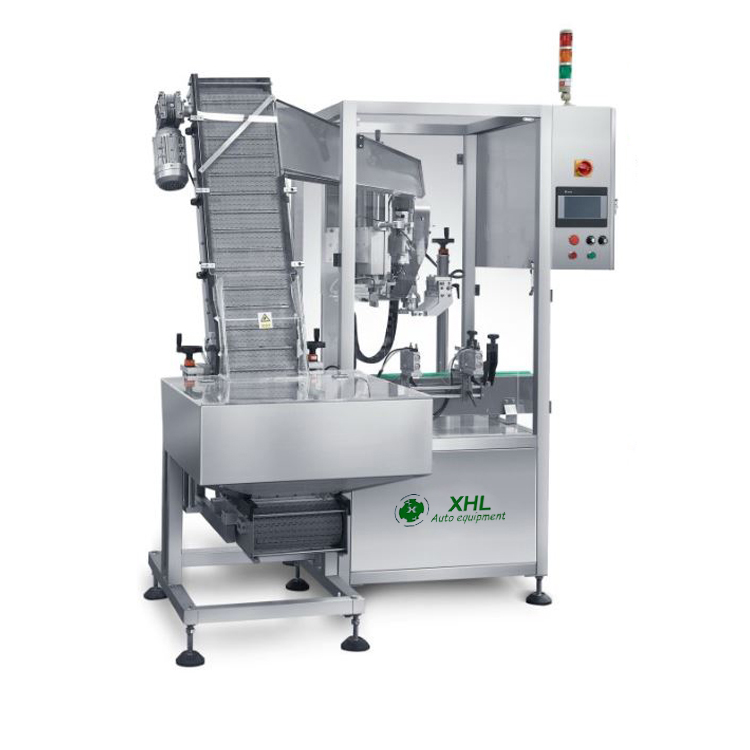

Overview
The machine is designed to position the bottles on the linear conveying line, and after pauses, the mechanical hand carries out cap feeding and cap turning of the positioned bottles. The machine can be used singly or for linked production. It is suitable for capping large bottles and barrels in such industries as medical, food, chemical industry, daily chemical industry, etc.
Features
- Automatic cap unscrambling with high capping rateand cap turning rate.
- Linear positioning, easy change of specifications and wide adjustment range.
- Smooth bottle feedingand discharging, variable frequency speed control, easy to be connected forlinked production.
- The tightness of the air gripper type cap turning head can be adjusted without damaging the bottle and cap.
-Continuous operation to complete automatic production, saving time and improving efficiency.
- The cap turning machine can be equipped with aservo motor, and the torque is adjustable.
- It can be equipped with the cap storage and lifting mechanism.
- It can be equipped with the mechanism for identifying reverse caps and eliminating nonconforming products.
- Replacement of parts is simple and easy to operate.
- The whole machine is designed according to GMP requirements.
Main Technical parameters
Product model | XGD/1 | XGD/2 |
Applicable bottle specification | 20-500ml | |
Optional screw cap size | F12-70mm | |
Applicable bottle type | flat, round, square | |
Number of cap turning heads | single-head | double-head |
cap turning pass rate | >=99% | |
Power | 0.8kw | 1.2kw |
Outline Size | 2000*1000*1500mm | 2000*1000*1500mm |
weight | 600kg | 700kg |
cap turning and pressing speed(bottle F40mm) | 1200-1500 bottle/hour | 2400-3000 bottle hour |
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
![]() |
