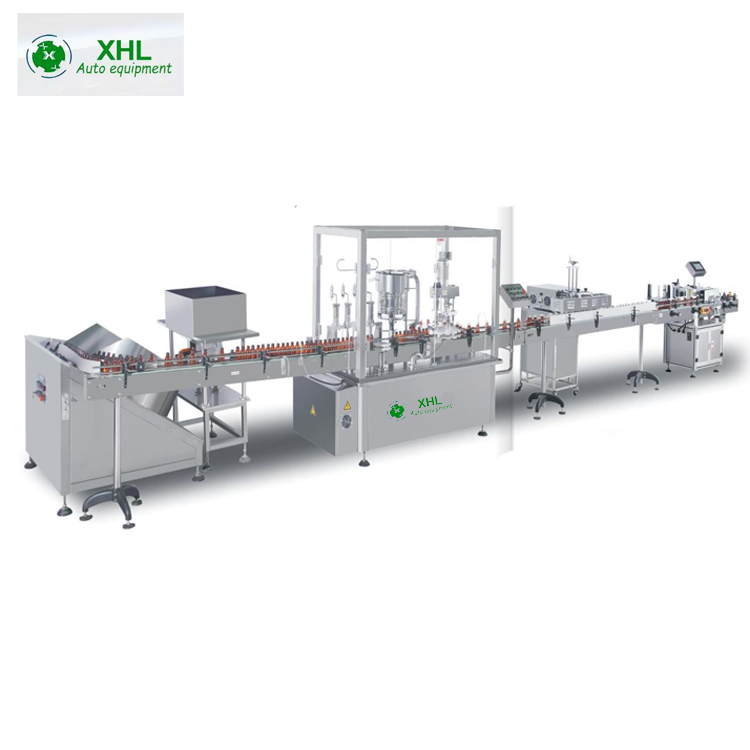

10000-12000BPH Automatic Water Filling Production Line
Product Description
Our Factory

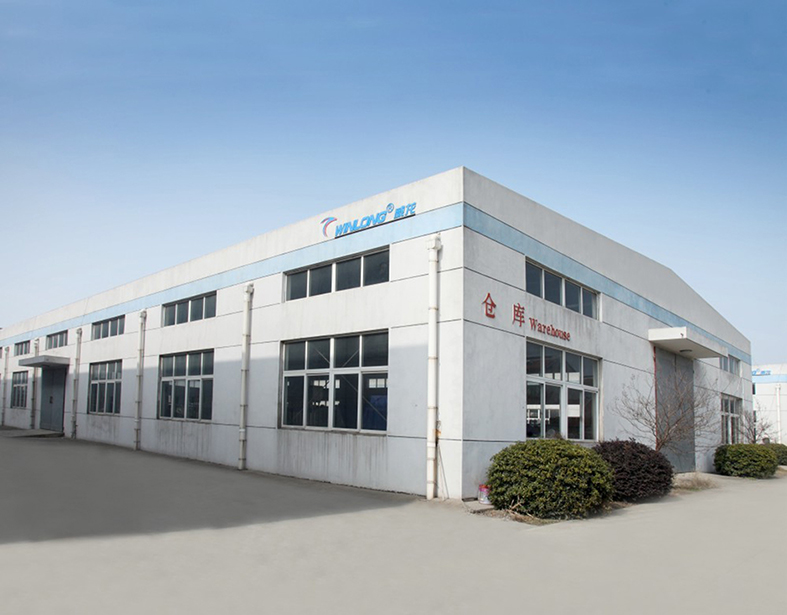

Our Warehouse
Why choose us?
1. 17 years manufacture in filling line and machine
2. 2 years alibaba supplier 3. 100% QC inspection before shipment 4. 12 months warranty 5. Product Certificated by CE, ISO
Overview
This production line is applied for filling syrup, oral liquid, tincture, lotion, agrochemical, solvent etc. in the field of pharmaceutical, foodstuff, agrochemeical, chemical, fully meet the GMP regulation. Full complete line accomplish automatic unsrambling, air rinsing, piston pump filling, screw capping, induction sealing, labeling. Whole line covers an small area, running stably, and economic and practical.
Features
-Adopt conveyor in-feed table, save labor,high efficient.
-Rinsing bottle by purified air, ensure the cleaniness, and with the Electrostatic eleminating high ion wind device.
-Volumetric piston pump to fill high precision,fit to light liquid and medium viscosity product, pump is easily taken down,convenient to clean and sterilize.
-The sealing of piston pump is made of different kinds of material,such as silicone,Teflon etc, optional ceramic pump in special use.
-PLC control system,frequency conversion adjustable speed.
-Filling system has the function of shrinking, no drop leakage.Top bottom fill,mostly reduce foam.
-Rotary filling advantage: small floor space, continuous running, higher efficiency.
-The whole machine is designed and produced accordance with GMP regulation.
Main Technical parameters
Alternative filling volume:
10-30ml,30-60ml,50-120ml,100-250ml,250-500ml
Suit to bottle shape:
round, flat,irregular
Filling head:
18 or 24 nozzles
Air rinsing head:
18 nozzles
Capping heads:
12 or 18 heads
Filling precision:
≤±1%
Qualified capping:
≥99.8%
Production capacity:
10000-12000BPH
Power supply:
220/380V 50Hz
Power consumption:
≤8Kw
Compressed air required
0.4-0.6MPa 20-35m3/h
Our Partner
Our service and warrantee
1.We can customize the machine as customer requried ; 2.Available for OEM/ODM service ; 3.Offer living broadcast or video support; 4.To Door installation and training service ; 5. Offer filling line solution with customer required 6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
